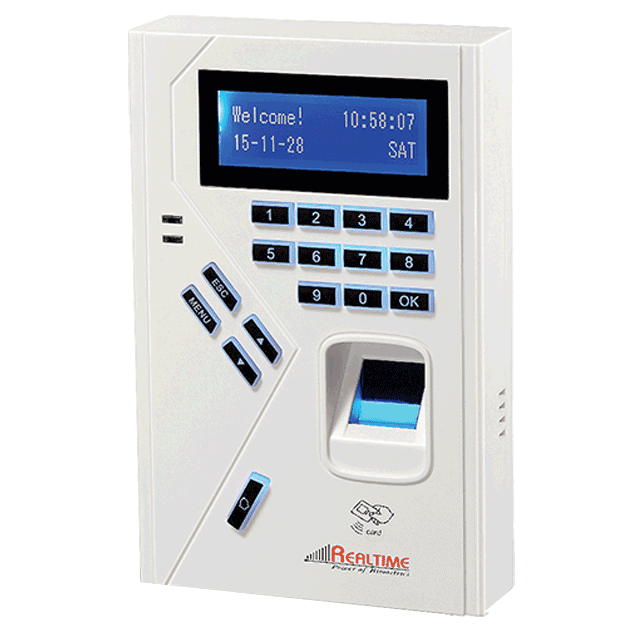

Realtime T16W Professional Monoscreen Access Control System

  • Fingerprint Scanner
  • Personal Identity Number
  • RF Card
  • Access Control
  • TCP/IP
View More



Product Description

USB disk Support ,Additional function Tamper Detection ,Audio output Buzzer ,RTC Support ,Module operating mode Stand-alone/Master mode, Reader Mode ,Identification mode Fingerprint, card, password and combinations ,Display language Support multi-languages. English, Turkish, Thai, as default.Access control Directly control of door lock / Indirectly control of door lock via Wiegand access controller. Support 50 access time zones, combination identification, anti-pass back.Control multi-doors Support Alarm function Support tamper, long time door open, illegal door open and intimidate alarm.Power management Support sleep mode, Self-test function Support Identify speed =1.0 second Fingerprint input angle 360 (any angle) Intelligent adaptation function Support ,Matching mode Support 1:N, 1:1

Fingerprint Users 3,000
Card User 3,000
Password User 3,000
Attendance Records 100,000
CPU 32bit CPU
Fingerprint senor Optical sensor
Fingerprint spoof detection Support
Multi-device Related Max. 255units
Card reader Including EM type ID card reader �(Option:�Mifare reader)
Display Monochrome screen 122*32
Communication TCP/IP,USB, Rs485
USB disk� Support
Additional function Tamper Detection
Audio output Buzzer
Working voltage DC 12V � 10%
Working humidity (RH)20 % - 80 %
Working temperature -100C~ +600C
Self-test function Support
FAR/ FRR 0.00001/ 0.1(%)
Identify speed ?1.0 second
Fingerprint input angle 3600(any angle)
Intelligent adaptation function Support
Matching mode Support 1:N, 1:1
