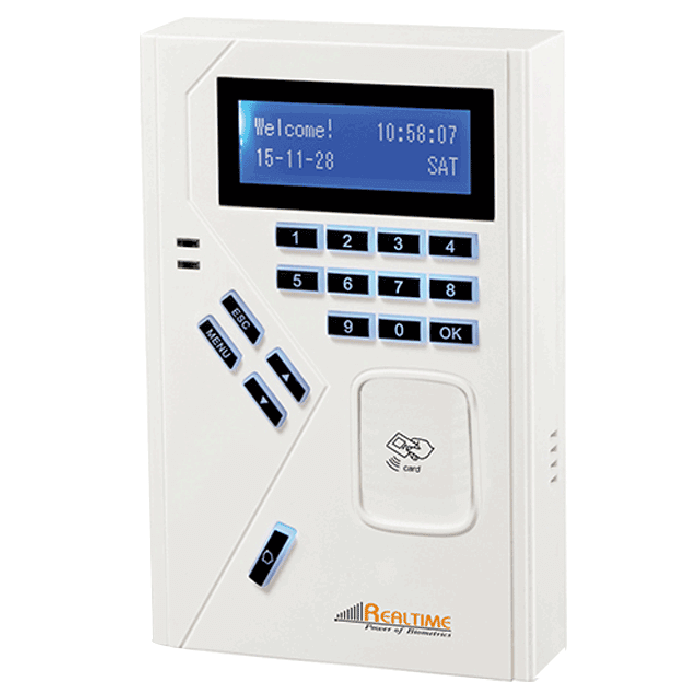

Realtime T16C Access Control Biometric Machine

♦ Realtime T16C Access Control Machine
♦ EM card
♦ RS 232/485
♦ Personal Identity Number
♦ USB Link
♦ USB Disk
♦ Access Control

View More

10,900.00 8,200.00

Brand Realtime
Card User 10,000
Password User 10,000
Attendance Records 100,000
CPU 32 bit cpu
Fingerprint Sensor Optical sensor
Multi-device Related Max. 255units
Card reader Including EM type ID card reader(Option:Mifare reader)
Display Monochrome screen 122*32
Communication TCP/IP,USB, RS485, WI-FI
Input and output terminals Power input (12V; GND) Wiegand input 26/34 Door relay terminal (COM; NO; NC) Alarm relay terminal (COM; NO; NC) Wiegand output 26/34 Exit button input (Exit; GND) Door sensor input Bell terminal (BELL) Anti-pass/reader communication terminal (RS485)
USB disk Support
Additional function Tamper Detection
Audio output Buzzer
RTC Support
Working voltage DC 12V ± 10%
Working humidity (RH)20 % - 80 %
Working temperature -10 C~ +60 C
Module operating mode Stand-alone/Master mode, Reader Mode
Identification mode Fingerprint, card, password and combinations
Display language Support multi-languages. English, Turkish, Thai, as default
Access control Directly control of door lock / Indirectly control of door lock via Wiegand access controller. Support 50 access time zones, combination identification, anti-pass back
Control multi-doors Support
Alarm function Support tamper, long time door open, illegal door open and intimidate alarm
Power management Support sleep mode
Self-test function Support
FAR/ FRR 0.00001/ 0.1(%)
Identify speed >1.0 second
Fingerprint input angle 360 (any angle)
Intelligent adaptation function Support
Matching mode Support 1:N, 1:1
