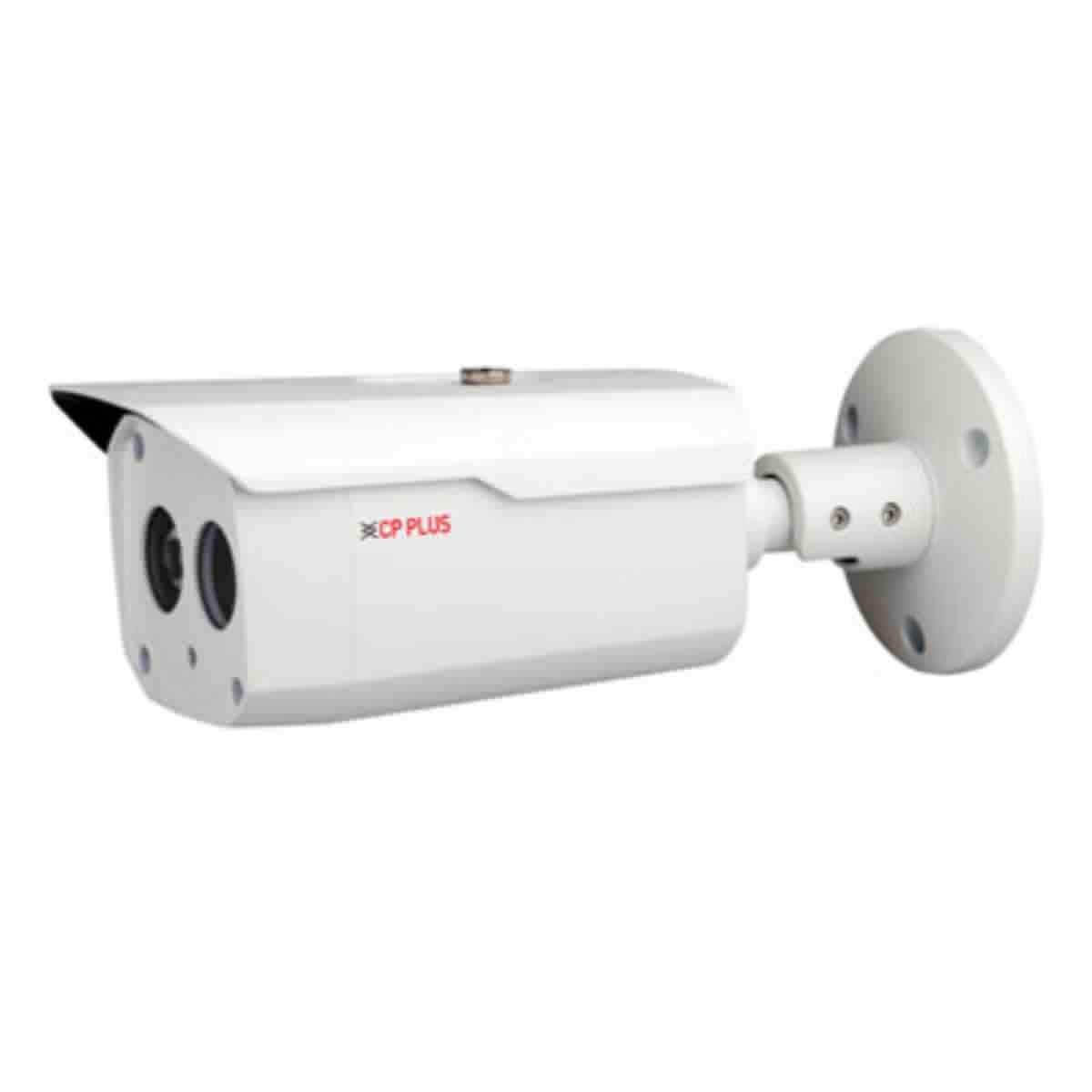

CP Plus CP-UVC-TA40R8 4MP 80M Bullet IR Camera

  • 1/3″ 4MP PS CMOS Image Sensor
  • Max 30fps@4MP
  • DWDR, Day/Night(ICR), 2D-DNR, AWB, AGC, BLC, HLC
  • 3.6mm lens (6mm, 8mm, 12mm optional)
  • OSD Menu, control over coaxial cable, 2D-DNR
  • Array Range of 80 Mtrs. , IP67
  • HD and SD switchable
View More



Product Description

Bullet cameraare limited to a fixed focal length lens. While Bullet camera good for small spaces, the images may have slightly cut-off corners because the camera shape and design can interfere with the actions the camera lens and filter.

  • Image Sensor                      1/3" PS CMOS
  • Minimum Illumination   0.03Lux/F2.0, 30IRE, 0Lux IR on
  • Effective Pixels                   2560×1440 , 4MP
  • Shutter Speed PAL             1/25~1/100000s NTSC: 1/30~1/100000s
  • White Balance                    Auto / Manual
  • Lens                                        3.6mm (6mm, 8mm, 12mm Optional)
  • AGC Control                          Auto / Manual
  • S/N Ratio                              More than 65dB
  • Back Light Comp.               BLC / HLC / DWDR
  • Video Streaming                 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
  • Video Output                       1-channel BNC high definition video output / CVBS video output (Can switch)
  • ICR                                             Auto (ICR) / Manual
  • IR Array Range of                   80 Mtr.
  • No. of IR LEDs                      2pcs
  • Operating Temperature   -40°C~+60°C / Less than 90%RH
  • Power Source                         12V DC ±25%
  • Power Consumption           Max 5.2W (12V DC, IR on)
  • Weatherproof Standard    IP67
  • Dimension                               241.8mm x 90.4mm x 90.4mm
  • Weight                                       0.59 kg
